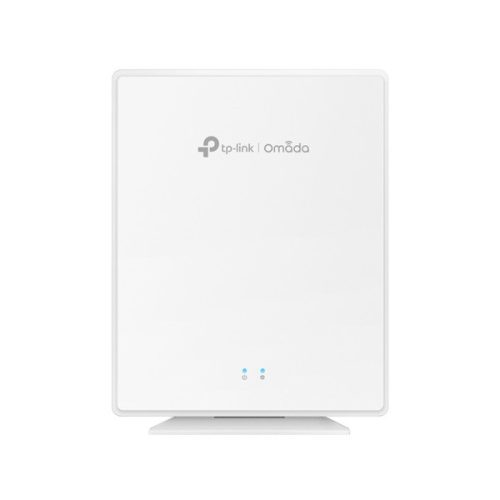

TP-LINK Wireless Access Point Dual Band AX3000 Wifi 6 Mennyezetre rögzíthető, EAP650-DESKTOP

• Részletek
• Adatok

Részletek

HARDWARE FEATURES

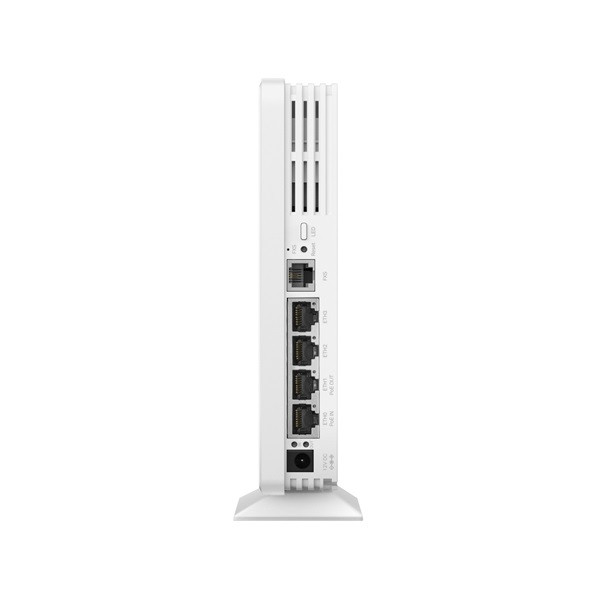

Interface	4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button	• Reset • LED
Power Supply	802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply
Power Consumption	17.3W (PoE Out Off)
Weight	452g (excluding mounting base)
Dimensions ( W x D x H )	6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna Type	Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi
Range	140?(1500 ft2)*
Mounting	Desktop / Wall mouting (Kits included)

WIRELESS FEATURES
Concurrent Clients	250+*
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: 2402 Mbps† • 2.4 GHz: 574 Mbps
Wireless Functions	• 2×2 (2.4G & 5G) MU-MIMO‡ • HE160 (160 MHz Bandwidth)‡ • OFDMA‡ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	System Log
SSH	Yes
Web-based Management	Yes
Zero-Touch Provisioning	Yes.Reauire the use of Omada Cloud-Based controller

OTHERS
Certification	CE, FCC, RoHS, IC
Package Contents	• EAP650-Desktop • Desktop/Wall Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

EAP650-DESKTOP

Garancia:

60 hónap

EAN:

8885020623734

Gyártó:

TP-LINK

EAN:

8885020623734

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax

Repeater funkció:

Igen

Bridge funkció:

Igen

Kültéri kivitel:

Nem
