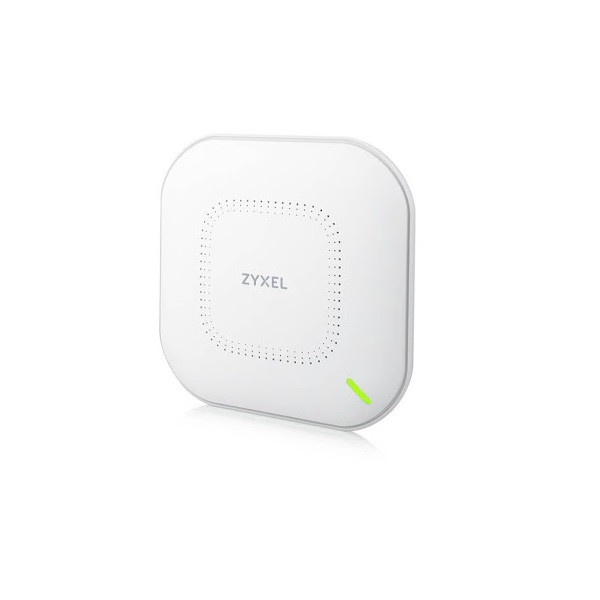

ZYXEL Wireless Access Point Dual Band AX1500 Falra rögíthető + 1 év NCC Pro Pack Bundle, WAX510D-EU0101F

• Részletek
• Adatok

Részletek

Models	WAX510D
Product name
Description	802.11ax (WiFi 6) Dual-Radio Unified Access Point
Wireless
Standard	IEEE802.11 ax/ac/n/g/b/a
MIMO	MU-MIMO
Wireless speed	2.4GHz: 575Mbps 5GHz: 1200Mbps
Frequency band	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth	20-, 40- and 80-MHz
Conducted typical transmit output power	US (2.4GHz/5GHz): 23/26dBm EU (2.4GHz/5GHz): 20/25dBm
RF Design
Antenna type	2x2 dual-optimized antenna
Antenna gain	2.4GHz: Peak Gain 5dBi 5GHz: Peak Gain 6dBi
Minimum Receive sensitivity	Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering	Yes
WDS	Future Support
Mesh AP (By License)	Future Support
Mesh AP for multiple SSID with VLAN	Future Support
Smart mesh	Future Support
Fast roaming	Pre-authentication, PMK caching and 802.11r
DCS (Auto Channel)	Yes
Load balancing	Yes
Security
Wireless Security	WPA WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3)
Access management	L2-isolation MAC filtering Rogue AP detection EAP IEEE 802.1X RADIUS authentication
Networking
IPv6	Yes
VLANs	Yes
WMM	Yes
U-APSD	Yes
DiffServ marking	Yes
Management
Operating mode	Nebula Cloud managed Controller-managed Standalone
ZON Utility	Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel Wireless Optimizer	WiFi AP planning WiFi coverage detection Wireless health management
Web UI/ CLI	Yes
SNMP	Yes
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.) 180 x 180 x 39 / 7.09 x 7.09 x 1.54 Weight (g/lb.) 453g / 1
Packing	Dimensions (WxDxH)(mm/in.) 229 x 216 x 64 / 9.02 x 8.5 x 2.52 Weight (g/lb.) 770g / 1.7
Included accessories	Mount plate Mounting screws
MTBF (hr)	635,837
Physical Interfaces
Ethernet port	1 x 10/100/1000M LAN
Power	PoE (802.3)at: power draw 17 W DC input : 12 VDC 1.5A
Environmental Specifications
Operating	Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing)
Storage	Temperature -30°C to 70°C/-22°F to 158°F Humidity 10% to 90% (non-condensing)
Certifications
Radio	FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002
EMC	FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438
Safety	Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1

Adatok

Gyártó:

ZYXEL

Gyártói cikkszám:

WAX510D-EU0101F

Garancia:

60 hónap

EAN:

4718937610303

Gyártó:

ZYXEL

EAN:

4718937610303

Sebesség:

1200Mbps

Frekvencia:

2.4 GHz és 5 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax

Repeater funkció:

Igen

Bridge funkció:

Igen

Kültéri kivitel:

Nem

Rejtett SSID:

Igen
