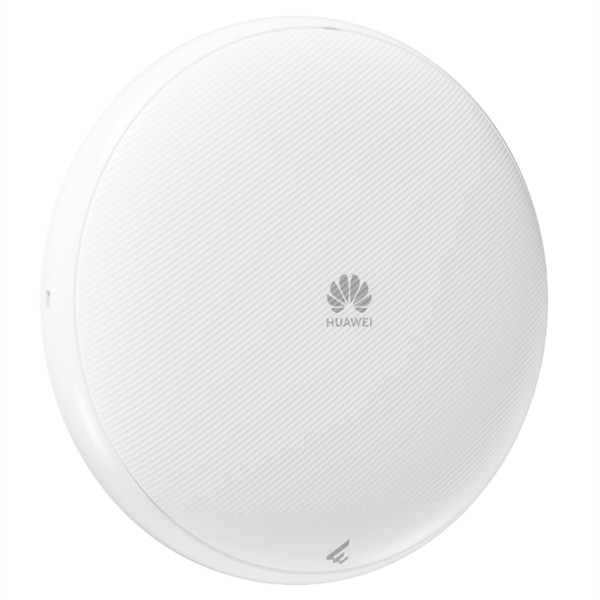

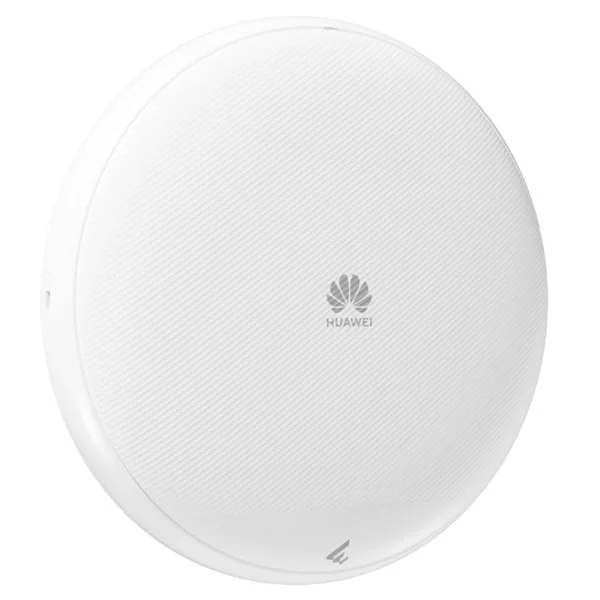

Huawei eKit Wireless Access Point TriBand,WiFi 7,13.66 Gbps,Smart Antenna,1x5GE uplink,1x1GE downlink,POE w/o AC,beltéri

• Részletek
• Adatok

Részletek

First supported version	V600R024C00

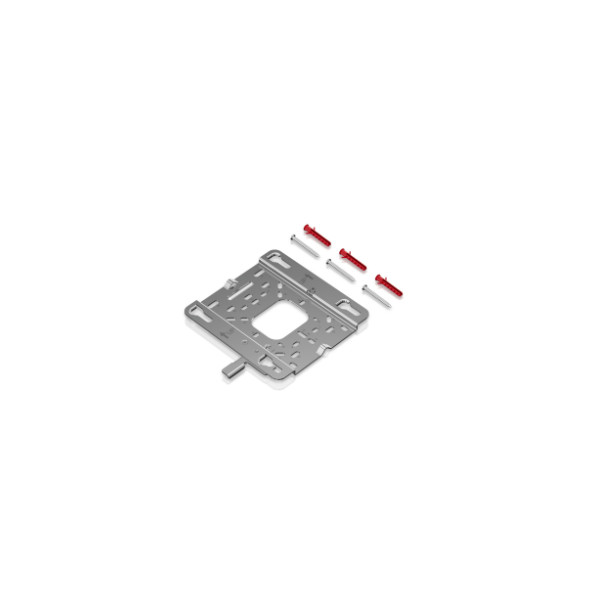

Installation Type	Wall,Ceiling,T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.)
Weight without packaging [kg(lb)]	0.745 kg (1.64 lb)
Weight with packaging [kg(lb)]	1.230 kg (2.71 lb)
CPU	4-core, 1.0 GHz
Memory	DDR4 512 MB
Console port	Bluetooth console
Power supply mode	PoE,DC power adapter
Storage	NAND Flash 512 MB
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3at/af
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

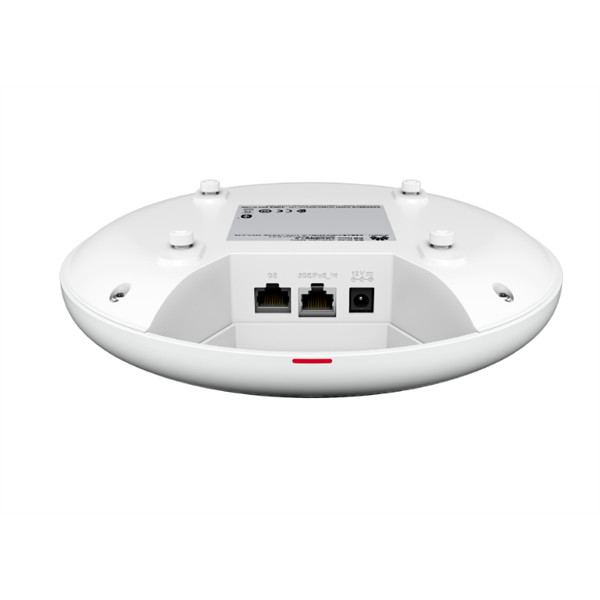

Maximum number of physical ports on the entire device	5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Floating ground
USB	USB 3.0 is unavailable currently and will be supported through software upgrade in the future.
BLE	BLE5.2
Radio number	3
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be
Radio interface	Built-in smart antennas
Antenna gain	2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BT: 4 dBi
Maximum transmit power	2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm
3G/LTE filte (ACC)	Supported
MTBF [year]	110.878
MTTR [hour]	2
Maximum power consumption [W]	21.1 W (excluding USB)
Maximum heat dissipation [BTU/hour]	66
802.3bt power supply description	The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.
802.3at power supply description	The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.
802.3af power supply description	The power supply mode is negotiated to 802.3af. Wi-Fi service: A maximum of 2.4 GHz (2x2) + 5 GHz (2x2) is supported. The USB is unavailable. Other functions are not restricted.
DC power supply description	No function is limited.
Operating frequency band	2.4GHz,5GHz,6GHz
Frequency stability [ppm]	+/-20

Adatok

Gyártó:

Huawei eKit

Gyártói cikkszám:

50087291

Garancia:

24 hónap

EAN:

6901443458035

Gyártó:

Huawei eKit

EAN:

6901443458035

Frekvencia:

2.4 GHz és 5 GHz és 6 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.11be

LAN sebesség:

10/100/1000 Mbit/s

POE adapter:

Nem
